Hub-City Splines / Shafts

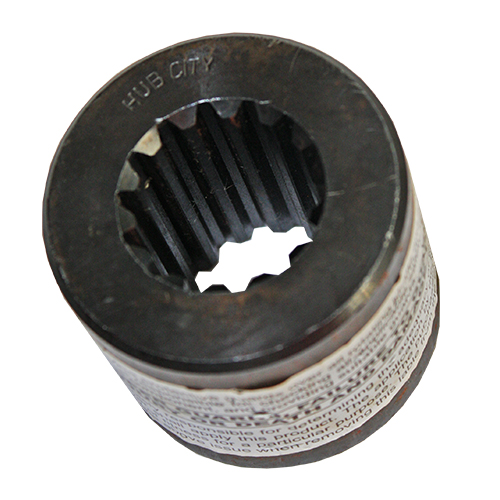

- Splined hubs are machined true on O.D. to spline axis for pressing or welding into drive components.
- Supplied in soft condition, they may be induction hardened or carburised. Manufactured from K1146 or K1050 material.
HUBS
|
MODEL |
DESCRIPTION |
HUB O.D |
HUB LENGTH |
|
mm |
mm |
||
|
03-32-00031 |
6B x 1” |
50.8 |
44.5 |
|
03-32-00032 |
9T x 5/8” |
31.8 |
31.8 |
|
03-32-00033 |
13T x 7/8” |
38.1 |
38.1 |
|
03-32-00034 |
14T 1 1/4” |
57.2 |
50.8 |
|
03-32-00035 |
21T x 1 3/8” |
57.2 |
54.0 |
|
03-32-00037 |
16T x 2 1/8” |
89.0 |
75.4 |
|
03-32-00071 |
11T x 3/4” |
38.1 |
38.1 |
|
03-32-00072 |
15T x 1” |
44.5 |
44.5 |
|
03-32-00073 |
23T x 1 1/2” |
57.2 |
54.0 |
|
03-32-00074 |
13T x 1 3/4” |
76.2 |
57.2 |
|
03-32-00075 |
27T x 1 3/4” |
76.2 |
57.2 |
|
03-32-00085 |
18T x 25mm |
44.5 |
44.5 |
|
03-32-00093 |
17T x 1 1/2” |
57.2 |
69.9 |
Shafts
|
MODEL |
DESCRIPTION |
SHAFT LENGTH |
|
mm |
||
|
03-32-00023 |
9T x 5/8” |
152 |
|
03-32-00024 |
13T x 7/8” |
152 |
|
03-32-00025 |
14T 1 1/4” |
254 |
|
03-32-00044 |
15T x 1” |
203 |
|
03-32-00390 |
6B x 1” |
254 |
Reducing Bushes
|
MODEL |
DESCRIPTION |
|
02-23-02149-330 |
1 1/4” x 14T to 5/8” x 9T |
|
02-23-02148-330 |
1 1/4” x 14T to 7/8” x 13T |
Click here for the Hub City website.
HUB-CITY BUSH 1 1/4" 14T X 5/8" 9T
02-23-02149-330
Unit Weight: 0.1100
HUB-CITY BUSH 1 1/4" 14T X 7/8" 13T
02-23-02148-330
Unit Weight: 0.0500
HUB-CITY SPLINED HUB 11T x 3/4"
03-32-00071
Unit Weight: 0.2600
HUB-CITY SPLINED HUB 13T x 1 3/4"
03-32-00074
Unit Weight: 1.4300
HUB-CITY SPLINED HUB 13T x 7/8"
03-32-00033
Unit Weight: 0.2400
HUB-CITY SPLINED HUB 14T x 1 1/4"
03-32-00034
Unit Weight: 0.7400
HUB-CITY SPLINED HUB 15T x 1"
03-32-00072
Unit Weight: 0.3800
HUB-CITY SPLINED HUB 16T x 2 1/8"
03-32-00037
Unit Weight: 2.4500
HUB-CITY SPLINED HUB 17T x 1 1/2"
03-32-00093
Unit Weight: 0.6800
HUB-CITY SPLINED HUB 18T x 25MM
03-32-00085
Unit Weight: 0.3800
HUB-CITY SPLINED HUB 21T x 1 3/8"
03-32-00035
Unit Weight: 0.7040
HUB-CITY SPLINED HUB 23T x 1 1/2"
03-32-00073
Unit Weight: 0.6300
HUB-CITY SPLINED HUB 27T x 1 3/4"
03-32-00075
Unit Weight: 1.3760
HUB-CITY SPLINED HUB 6B x 1"
03-32-00341
Unit Weight: 0.0000
HUB-CITY SPLINED HUB 6B x 1"
03-32-00031
Unit Weight: 0.5500
HUB-CITY SPLINED HUB 9T x 5/8"
03-32-00032
Unit Weight: 0.1600
HUB-CITY SPLINED SHAFT 13T x 7/8"
03-32-00024
Unit Weight: 0.3800
HUB-CITY SPLINED SHAFT 14T x 1 1/4"
03-32-00025
Unit Weight: 1.3300
HUB-CITY SPLINED SHAFT 15T x 1"
03-32-00044
Unit Weight: 0.6700
HUB-CITY SPLINED SHAFT 6B x 1"
03-32-00390
Unit Weight: 0.8500
HUB-CITY SPLINED SHAFT 9T x 5/8"
03-32-00023
Unit Weight: 0.1750
